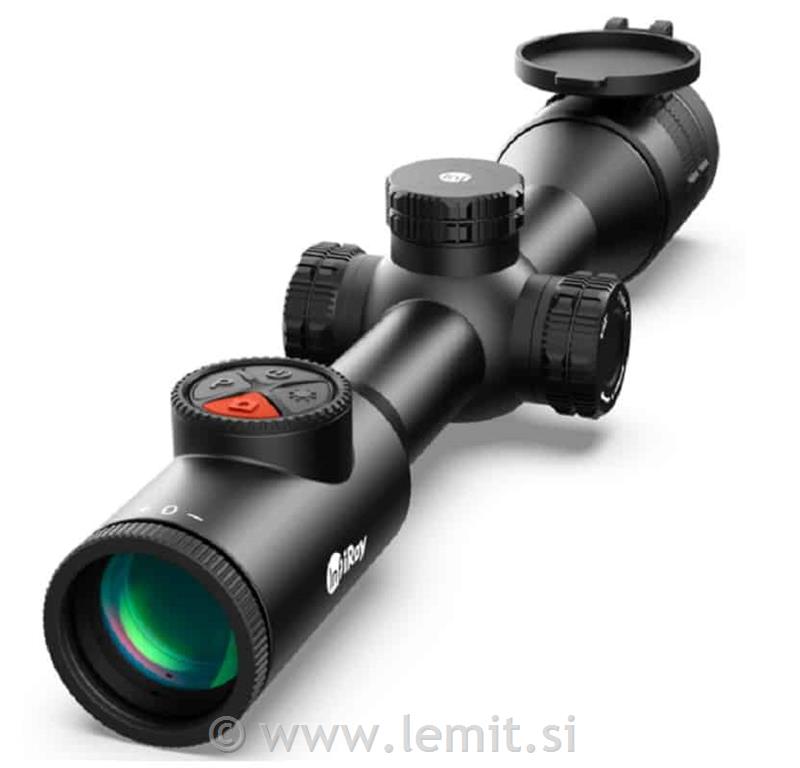

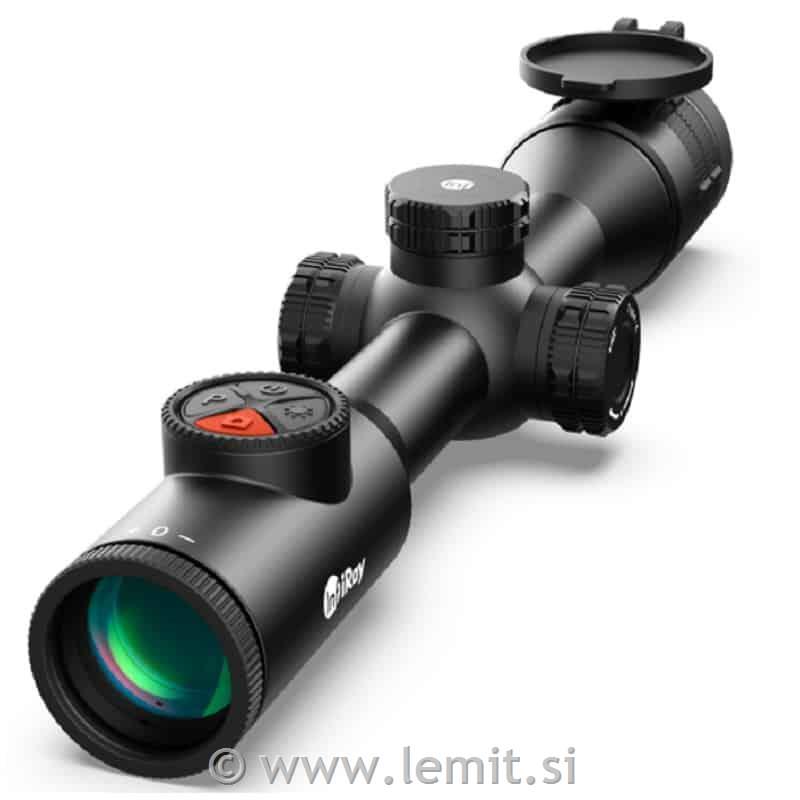

Infiray Tube TH50 V2

Following the classic Tube appearance design by looking like a day riflescope. TH50 V2 expresses an advanced and brilliant creation out of Tube series by using the 1.39’ round screen. The 1.39’ round screen will bring a whole different sense of experience by offering a much bigger view. For whom value tradition and pursue technology improvement , TH50 V2 is a go- to choice .

1.39’Round Screen
The application of 1.03’round screen is groundbreaking and Innovative in the thermal scope industry. The grand view brought by 1.03’round screen can present a more comfortable and pleasant observing experience.

Diopter Adjustment Free
In order to aviod inconvenient diopter adjust operations for users, InfiRay has innovatively developed one feature on TH50-- no need to adjust diopter. The clarity of image is demonstrated in the range of -4D without diopter adjustment, as well as expanded to +3D through extra accessories.

5 Practical Color Palettes
TH50 V2 prepared 5 different color palettes which are "white hot, black hot, red hot, color, hot target, highlight" you can choose to suit different situations. The hot target highlight mode is particular owned by InfiRay to help you highlight the target and blacking the rest, target will be more obvious while the background turns into black.

Classic inheritance Go-to-choice for Traditional Ones
Full aluminum housing guarantees the reliability of TH50, applicable for 30 mm diameter pipe, the appearance allows TH50 to be installed on standard 30 mm scope rings, with simple operation, high stability.

High Shock Resistance
The high shock resistance of TH50 V2 is up to 6000J, it ensures the reliability of TH50 V2.

Sufficient Operation Time
Built-in batteries work for 8.5 hours, and with an additional 18500 battery for back up, working time of TH50 V2 will be 10 hours.

Upgrading 32G Storage, No Miss of Precious Moments
The storage space updated to 32G, more worth-recording moments can be captured and preserved. Built-in microphone is included.

Ultraclear Mode
When Ultraclear mode is on, bad weather condition effect is off. With Untraclear mode, TH50 V2 can still provide a clear and detailed image even in bad weather conditions such as heavy fog and rain. Bad weather can’t slow you down.

Riflescope front lens diameter
50 mm
Thermal sensor
640x512 12µm
Thermal sensor NETD
25 mK
Screen
2560x2560 1.03" micro-OLED
Tube diameter (mm)
30
Magnification interval (x)
3.5 – 14
Lens
50 mm
User's Guide
.
Data storage
32 GB built-in memory
Base magnification (x)
3.5
Eye relief
50 mm
Riflescope magnification
3.5 - 14x
Digital zoom
1-4x
Diopter compensation
-5 - +3.5 dpt
Power supply
built-in, rechargeable battery + external 18500 battery
Detection distance
Human (1.7 x 0.5 m): 2600 m
Manufacturer
InfiRay
Manufacturer's warranty
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Image repetition frequency
50 Hz
Screen color modes
5 modes
Field of view (°)
8.8°x7.0°
Shock resistance
6000J
Dimensions
365 x 85 x 75 mm
Microphone
yes
Sensor
640x512 pixel, 12 µm pixel; NETD: <= 25 mK
Color
black
In the box
thermal riflescope, Picatinny mount, case, USB-C cable, charger, cleaning cloth, 2 pcs 18500 battery, charger
Weight (g)
950
Operating time
up to 8.5 hours
Water resistance
IP67
